FireBloc Gypsum Board

Home > Products > Boards > Elephant Gypsum > FireBloc Gypsum Board

  • Durable
  • Export Quality

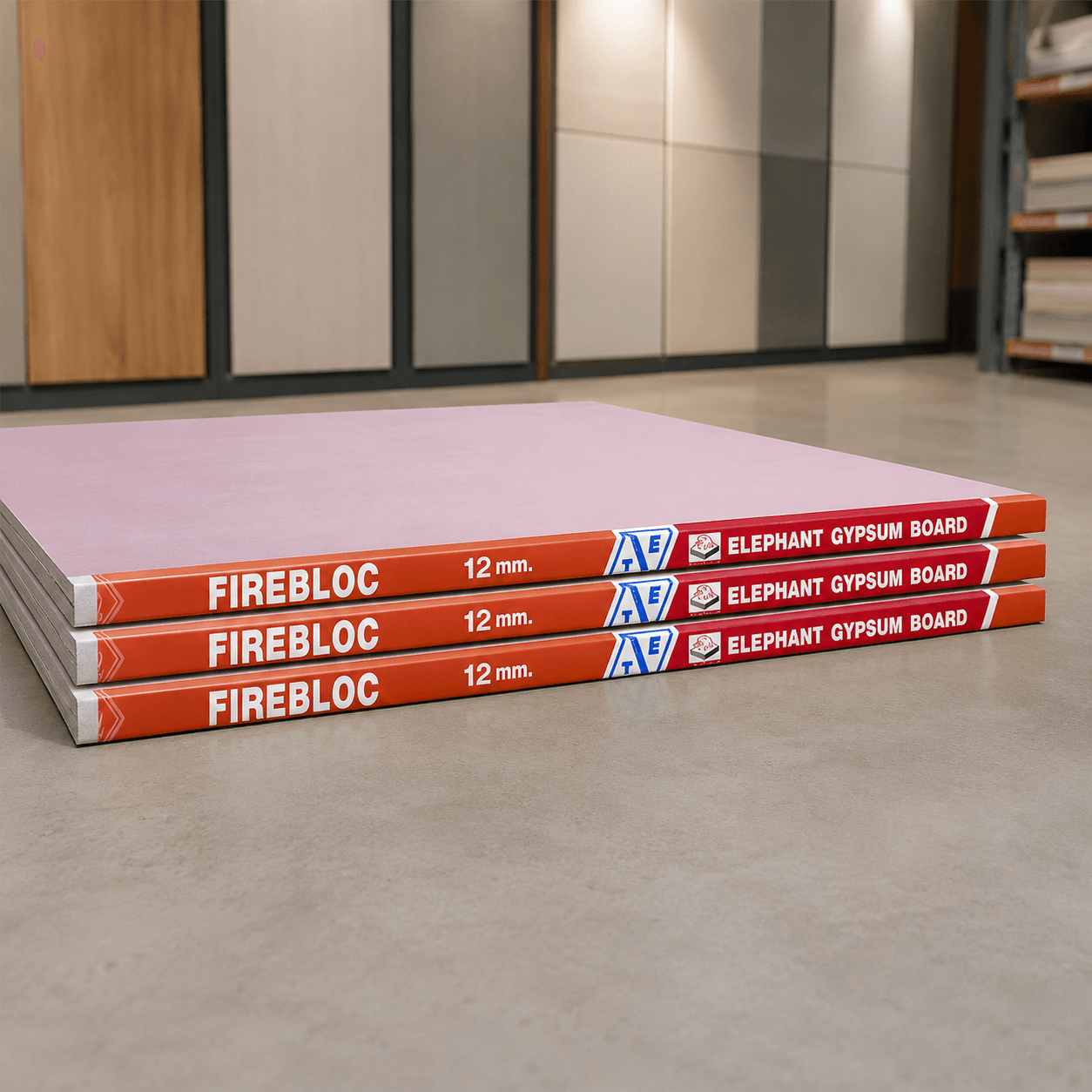

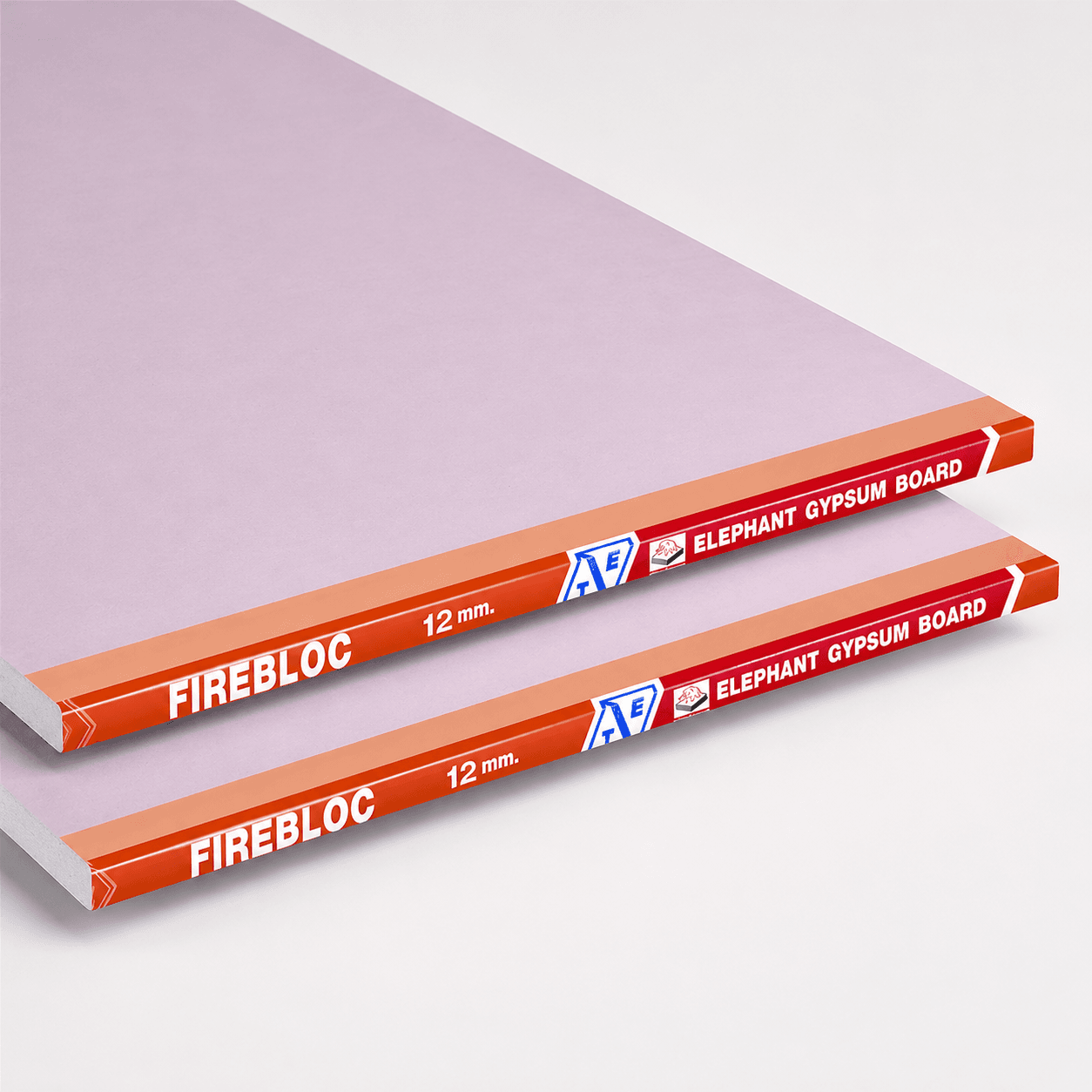

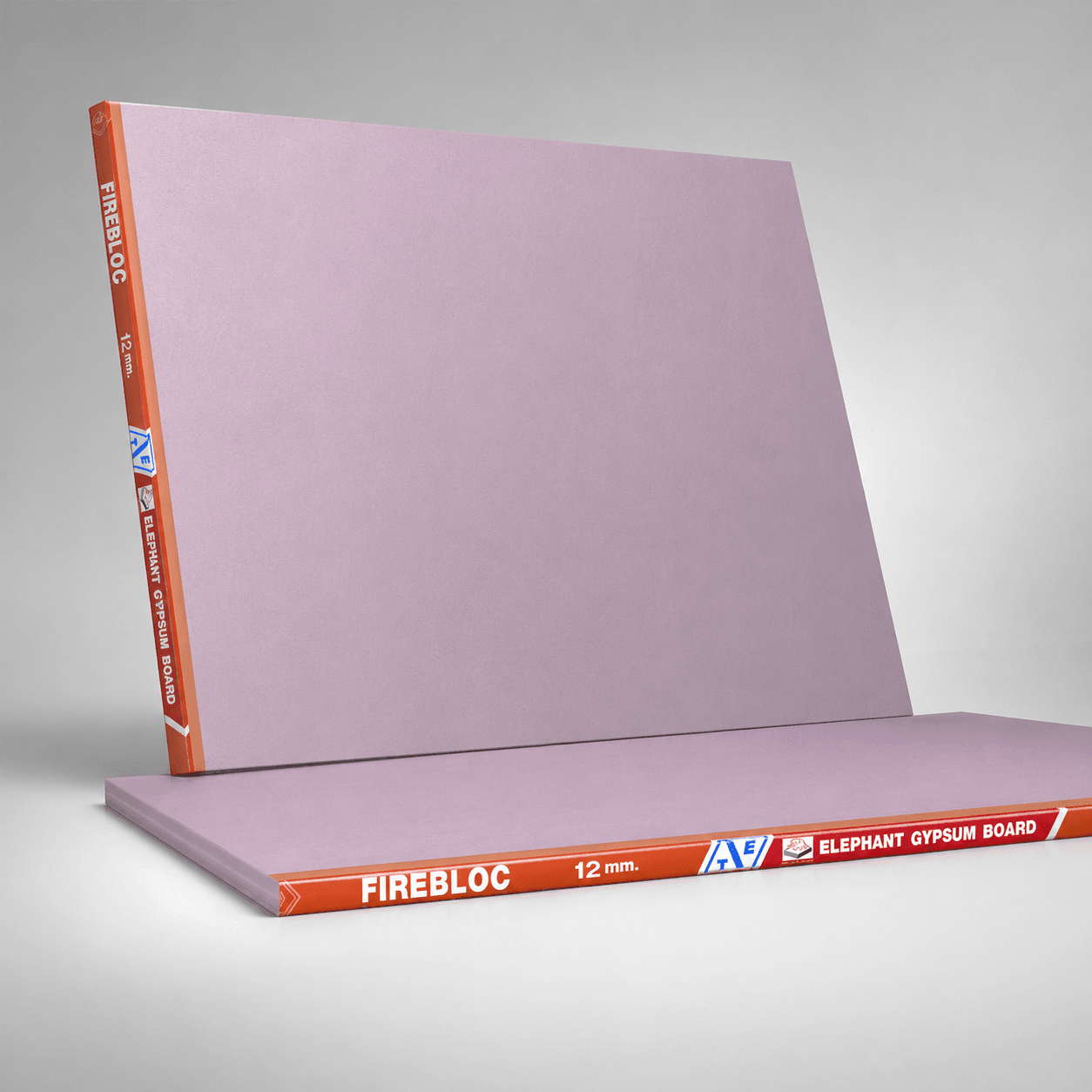

FireBloc Gypsum Board

FireBloc Gypsum Board is a durable, export-quality board specially engineered for advanced fire protection systems. Its core is reinforced with fiberglass and fire-resistant components, providing enhanced strength, stability, and superior resistance to high temperatures.

Designed for fire-resistance systems of up to 3 hours, FireBloc Gypsum Board helps improve occupant safety and structural protection in critical areas. It is suitable for use in fire-rated walls, ceilings, and partitions across residential, commercial, and industrial buildings.

Manufactured using health-safe and environmentally friendly materials, FireBloc Gypsum Board poses no health hazards and is fully recyclable, making it a responsible and sustainable choice for modern construction.

Standards & Tests

  • TIS 219-2552
  • ASTM C1396
  • BS 476
Working Properties
Splitting Resistance
Rated 3 out of 5
Screw/nail-holding
Rated 3 out of 5
Machining
Rated 3 out of 5

For Orders & Queries

Chat on WhatsApp
  • Support 24/7
  • Nationwide Delivery

Size
1200 x 2400 mm
4 x 8

Share on Social Media:

Marine Decking

Architectural Builds

Housing

Social Responsibility

Fully cognizant of our Corporate Social Responsibility, we take all possible measures for the safety and security of our employees, their health, working conditions and environment in and around the place of work. This includes compliance with standard operating procedures (SOPs) for industrial safety; and conscious avoidance of hazardous materials.

Contact Us

PRODUCT FAQS

Common questions about FireBloc Gypsum Board

Find answers to commonly asked questions about our products, including specifications, installation, usage, product features, and everything else you need to know.

What is FireBloc Gypsum Board?

FireBloc Gypsum Board is a specialized gypsum board designed for interior applications where fire resistance is an important consideration.



Its gypsum core is reinforced with fiberglass, helping the board provide enhanced fire-resistant performance compared with standard gypsum board. It is part of the Elephant Gypsum Board range and is intended for projects where fire protection is an important part of the building specification.

The primary benefit of FireBloc is its fire-resistant performance. Its fiberglass-reinforced gypsum core is designed to maintain its integrity for an extended period when exposed to fire.

It can also be used in wall, ceiling and partition systems, making it suitable for projects where both the practical benefits of gypsum board and additional fire resistance are required.

ireBloc uses a gypsum core reinforced with fiberglass. Gypsum contains chemically bound water, which is released as water vapour when exposed to high temperatures, while the reinforced core helps the board maintain its structural integrity during fire exposure.

The actual fire resistance of a completed wall or ceiling depends on the entire tested system, including the board configuration, number of layers, framing, joints and other components. The board should therefore be specified according to the required system performance rather than treated as a standalone fire barrier.

Timberline states that FireBloc Gypsum Board can provide up to 3 hours of fire resistance.

The achievable fire-resistance period depends on the specific tested construction and installation system. For projects with formal fire-rating requirements, the complete wall or ceiling assembly should be selected according to the applicable specifications and testing requirements.

FireBloc is suitable for interior applications where enhanced fire resistance is required. It can be considered for partitions, walls, ceilings and other gypsum-board systems where fire performance forms part of the project specification.

The appropriate configuration should be selected according to the building’s fire-safety requirements and the performance required from the complete system.

Yes. FireBloc can be used in interior wall, ceiling and partition systems where a fire-resistant gypsum board is specified.

The framing, board configuration, fixing method and finishing system should be selected according to the requirements of the particular installation and the relevant fire-rated system.

FireBloc Gypsum Board is available in a 1200 × 2400 mm sheet size, equivalent to approximately 4 × 8 feet.

The board is available in a 12.5 mm thickness, making it suitable for applications where the specified gypsum-board thickness is required.

FireBloc consists of a gypsum core reinforced with fiberglass. The reinforcement is an important part of the board’s fire-resistant construction and helps it maintain its integrity during exposure to high temperatures.

The board is also recyclable, making it suitable for projects where material recovery and responsible construction practices are considered.

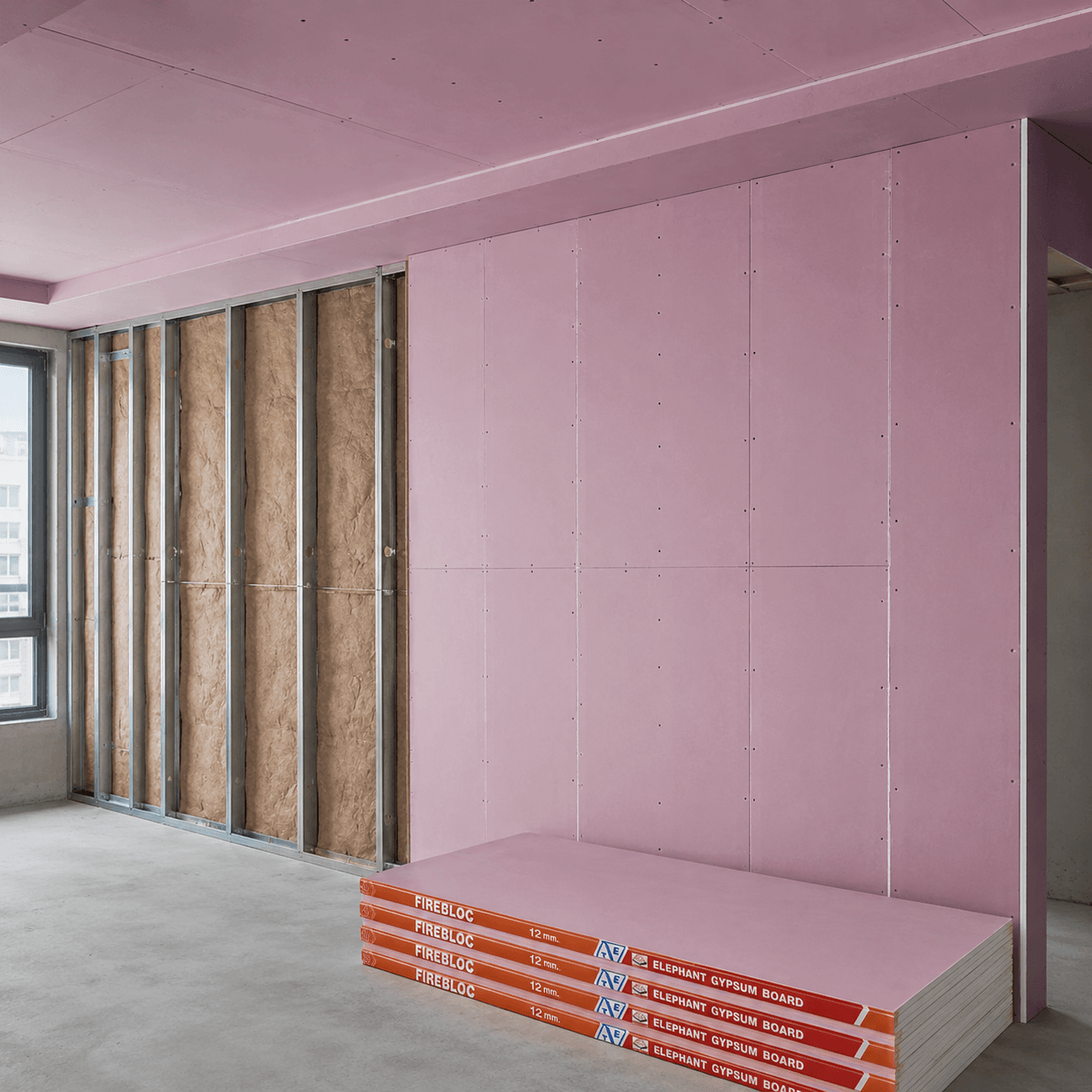

FireBloc is installed as part of a gypsum-board wall, ceiling or partition system using suitable framing, fasteners and joint-treatment materials.



The boards should be measured and cut accurately, securely fixed to the appropriate framing and properly finished at the joints. For fire-rated applications, installation should follow the requirements of the specific tested system, since the performance of the finished assembly depends on more than the board alone.

The right gypsum board depends on the environmental and performance requirements of the project. Fire resistance, moisture exposure, acoustic requirements, flexibility and external exposure can all influence which board is appropriate.



For projects where fire resistance is the primary requirement, FireBloc may be suitable. Other specialized options in the Elephant range address different requirements, such as MoldBloc Gypsum Board for mold-resistant applications, EchoBloc Gypsum Board for sound absorption and WeatherBloc Gypsum Boardfor applications requiring greater resistance to weather-related conditions.



The board should ultimately be selected according to the specifications of the complete building system and the conditions in which it will be installed.
